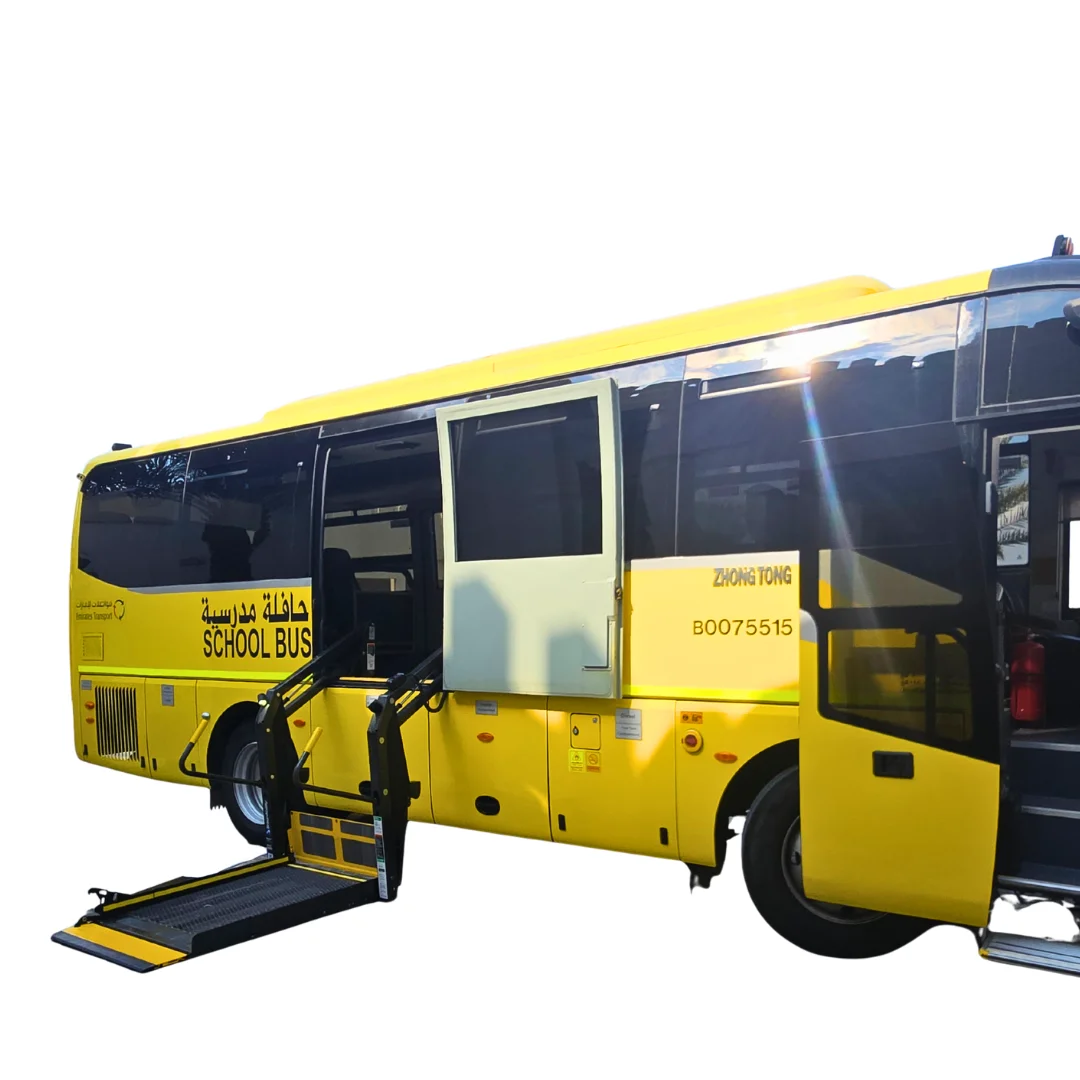

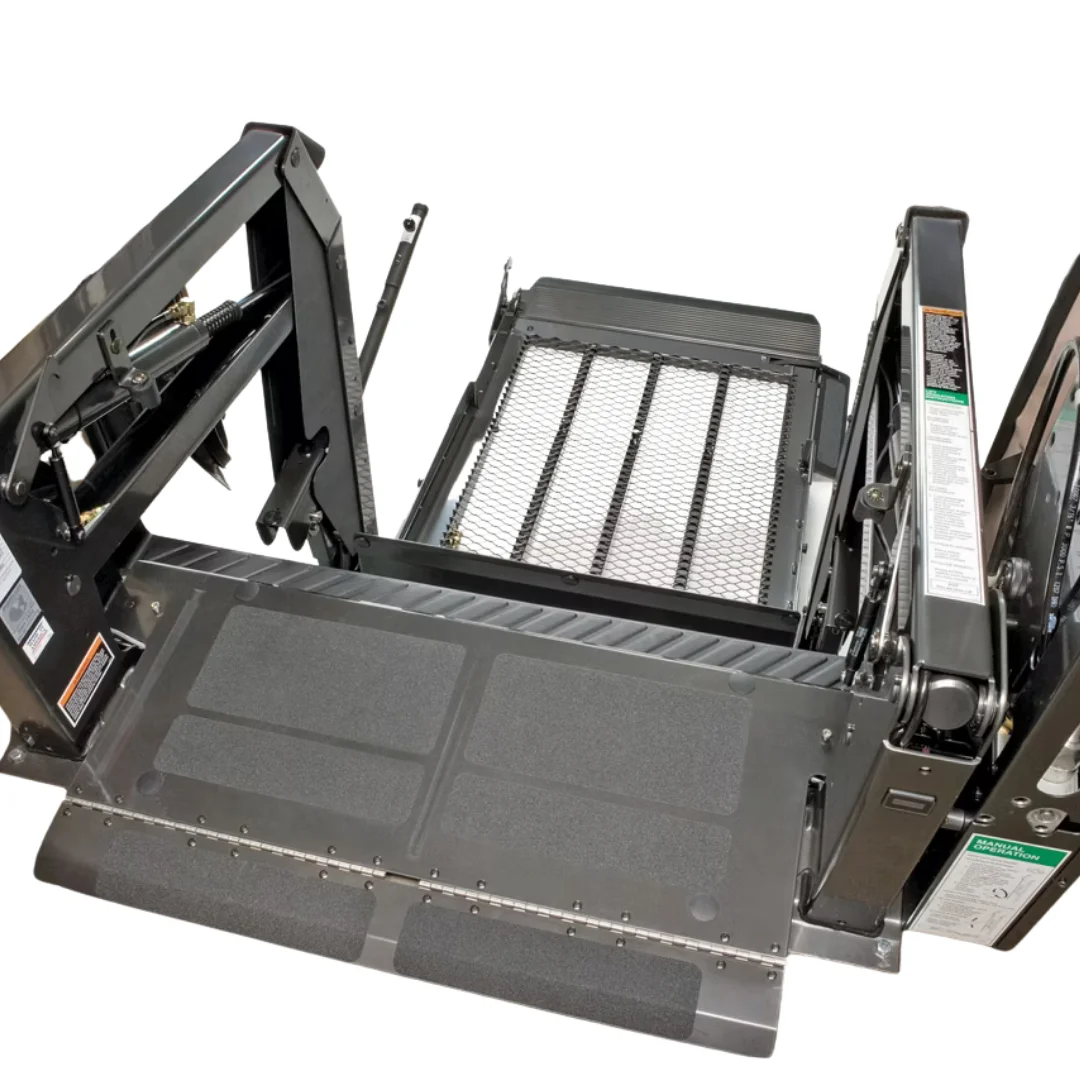

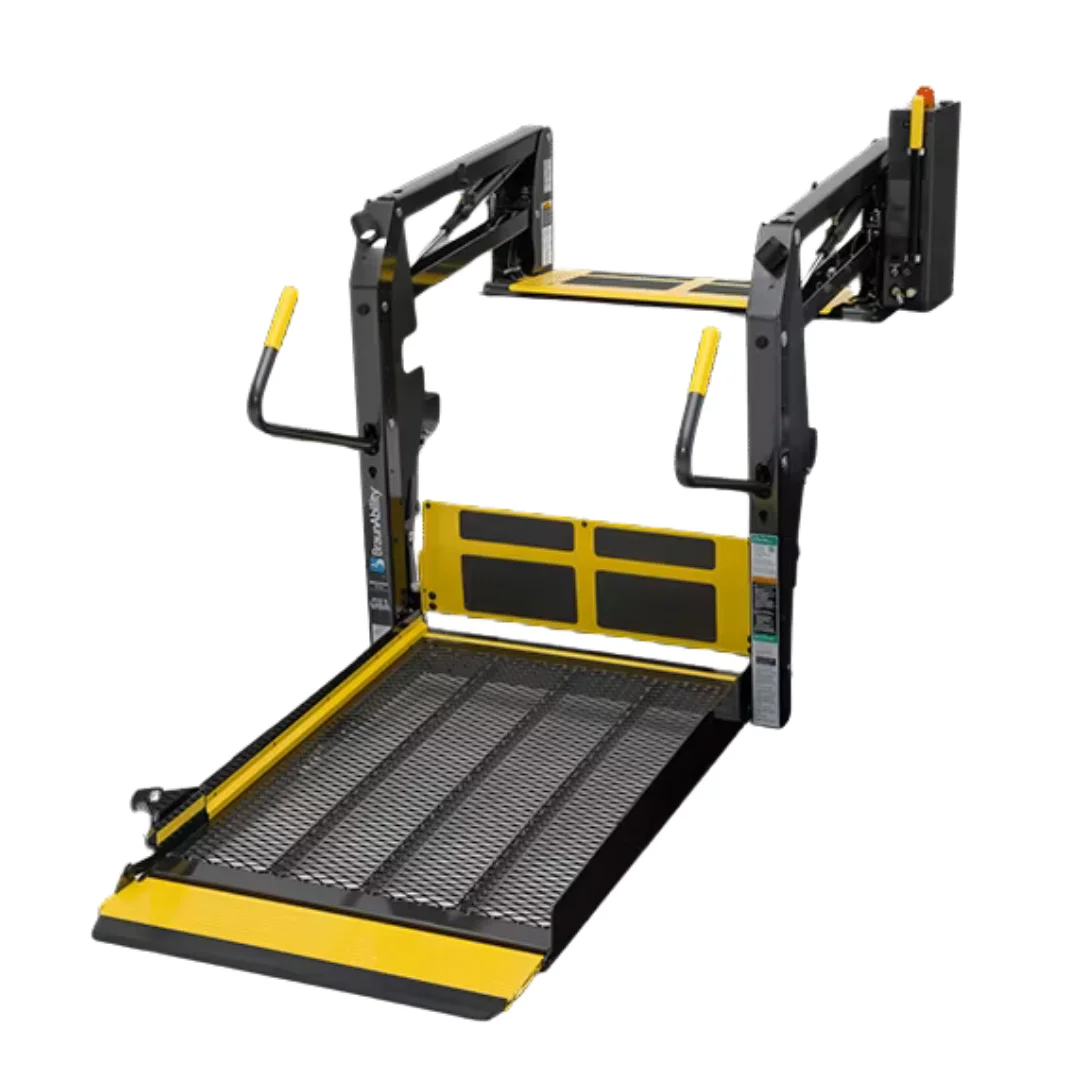

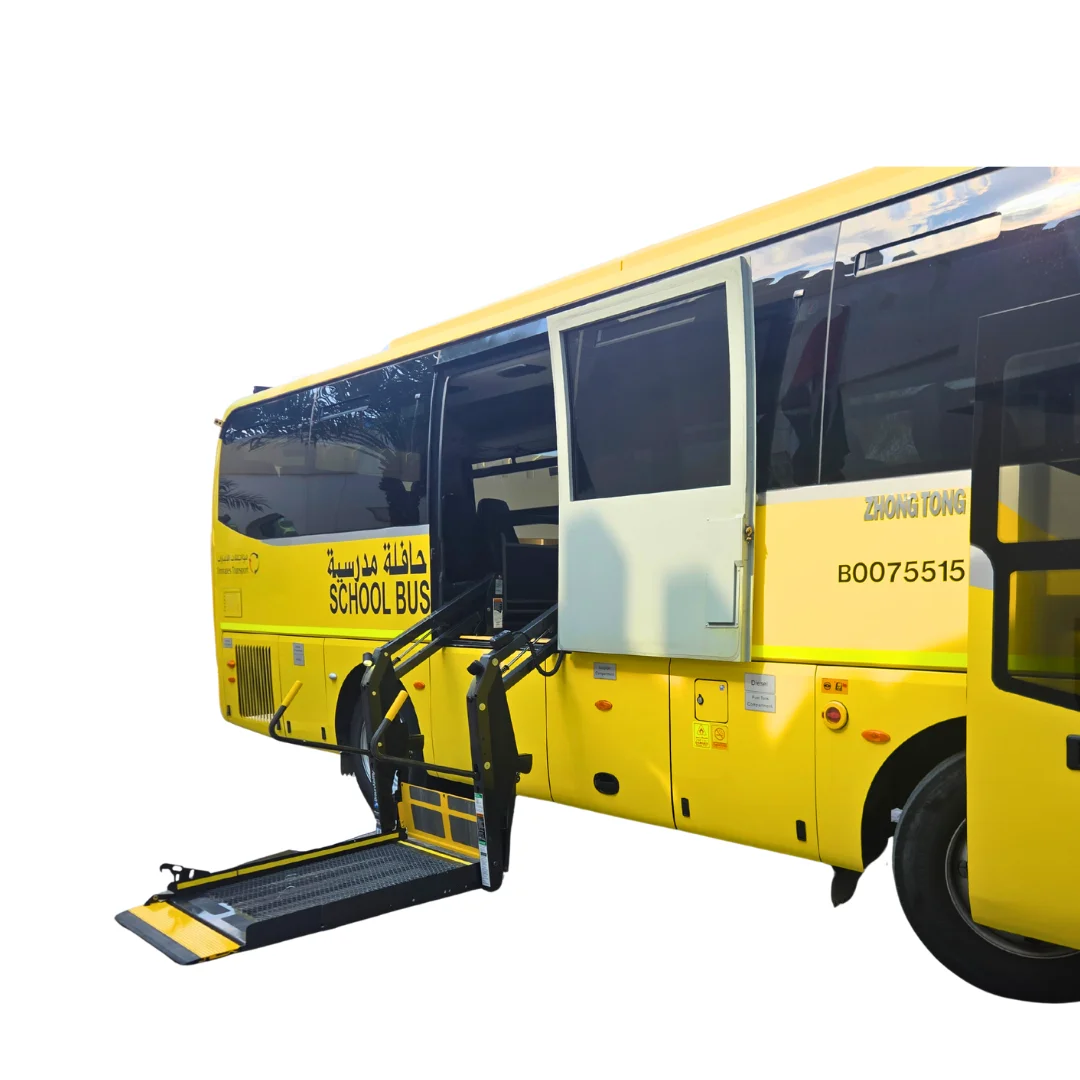

Wheelchair Lift for Bus

800-pound lifting capacity

Fully automatic

Interfaces with OEM interlocks

Long-lasting LED lift-mounted lights

Side or rear door application

Floor to ground lift heights up to 48″

Made in the USA

Hydraulically operated roll-stop

Excellent reliability and durability

Additional information

Lift Model	NL917IB-2 / NL917FIB-2
Lift Weight	160Kg
Lifting Capacity	362Kg
Clear Platform Width	33”
Clear Platform Length	51”
Overall Lift Height	56.25”
Max. Floor to Ground	48”
Overall Lift Width	45.25”
Min. Clear Door Opening Width	42”
Min. Clear Door Opening Height	57.375”
Threshold Area Depth	18”
